let sliceWidget = new Slice({
  view: view
});
sliceWidget.viewModel.shape = new SlicePlane({
  position: new Point({
    latitude: 34.06007911204149,
    longitude: -117.1867758409791,
    z: 416.852
  }),
  // a 30 degree angle between the slice plane and the ground plane
  tilt: 30,
  width: 32,
  height: 32,
  // the height plane axis is oriented North
  heading: 0
});
sliceWidget.viewModel.start();
view.ui.add(sliceWidget, "top-right");

Property Overview

Property Details

declaredClass Stringreadonly inherited

The name of the class. The declared class name is formatted as esri.folder.className.

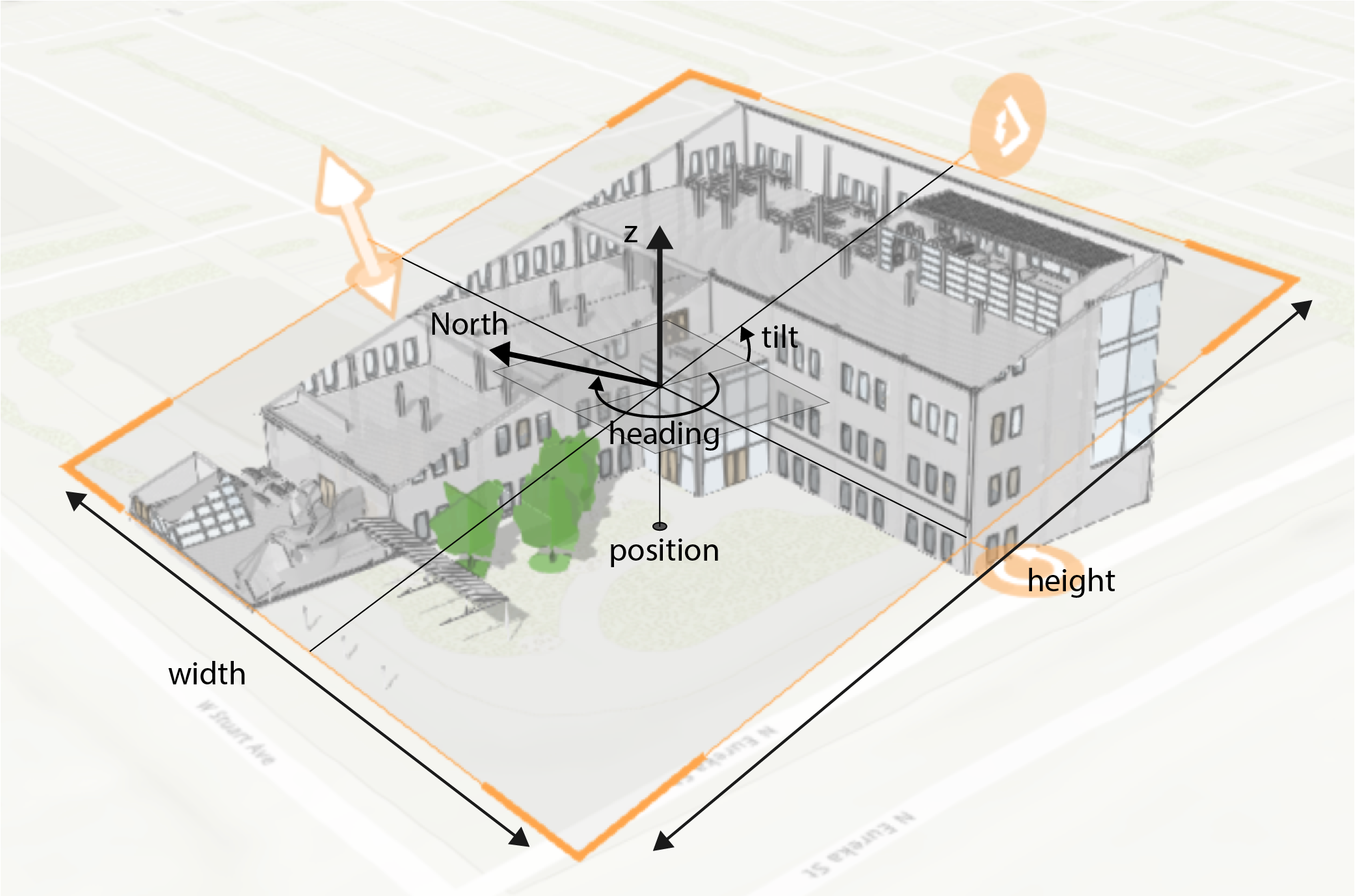

heading Number

The heading angle (in degrees) of the slice plane.

Default Value:0

height Number

The height of the slice plane. The unit is derived from the SpatialReference of the position.

Default Value:10

position Point

A point specifying the position of the center of the plane.

tilt Number

The tilt angle (in degrees) of the slice plane.

Default Value:0

type Stringreadonly

The string value representing the type of the slice shape.

For SlicePlane the type is always "plane".

width Number

The width of the slice plane. The unit is derived from the SpatialReference of the position.

Default Value:10

Method Overview

Method Details

clone(){SlicePlane}

Creates a deep clone of the slice plane object.

Returns:

Type	Description
SlicePlane	A deep clone of the SlicePlane instance that invoked this method.

Example:

// clone the shape since it cannot be directly modified
var newSlicePlane = viewModel.shape.clone();
newSlicePlane.heading += 30;

// set the new slice plane
viewMoodel.shape = newSlicePlane;

fromJSON(json){*}static

Creates a new instance of this class and initializes it with values from a JSON object generated from a product in the ArcGIS platform. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameter:

json Object A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns:

Type	Description
*	Returns a new instance of this class.

toJSON(){Object}

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns:

Type	Description
Object	The ArcGIS portal JSON representation of an instance of this class.
