CIMSymbol
require(["esri/symbols/CIMSymbol"], function(CIMSymbol) { /* code goes here */ });esri/symbols/CIMSymbolCIMSymbols are used to display multi-layer vector symbols for features and graphics. They allow the user to add more customizations to their symbols, using one or more symbol layers to create the desired effect on the symbol. CIMSymbols can be created from CIMSymbolReference JSON that complies with the CIM specification by passing the JSON to the data property. CIMSymbols can also be created from WebStyleSymbols, using WebStyleSymbol.fetchCIMSymbol().
To get or set the values for color, rotation, and size on the CIMSymbol, use the utility functions found in cimSymbolUtils.
This module is currently in beta. Not all properties in the CIM specification are supported.
Examples:
CIMPointSymbol
The code snippet below shows an example of creating a CIMPointSymbol with one CIMVectorMarker layer which contains a triangle marker graphic as shown below.
const symbol = new CIMSymbol({
data: {
type: "CIMSymbolReference",
symbol: {
type: "CIMPointSymbol",
symbolLayers: [{
type: "CIMVectorMarker",
enable: true,
size: 32,
frame: {
xmin: 0,
ymin: 0,
xmax: 16,
ymax: 16
},
markerGraphics: [{
type: "CIMMarkerGraphic",
geometry: {
rings: [[[8, 16],[0, 0],[16, 0],[8, 16]]]
},
symbol: {
type: "CIMPolygonSymbol",
symbolLayers: [{
type: "CIMSolidStroke",
width: 5,
color: [240, 94, 35, 255]
}]
}
}]
}]
}
}
});
Click read more below to see examples for CIMLineSymbol and CIMPolygonSymbol.
Read more
CIMLineSymbol
Since 4.16

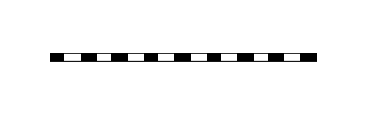

The code snippet below shows an example of a CIMLineSymbol with one CIMSolidStroke layer with a dash effect on top of another CIMSolidStroke layer as shown below.
const lineSymbol = new CIMSymbol({
data: {
type: "CIMSymbolReference",
symbol: {
type: "CIMLineSymbol",
symbolLayers: [{
type: "CIMSolidStroke",
effects: [{
type: "CIMGeometricEffectDashes",
dashTemplate: [5, 5],
lineDashEnding: "FullGap",
controlPointEnding: "NoConstraint"
}],
enable: "true",
capStyle: "Butt",
joinStyle: "Round",
width: 2.6,
color: [255, 255, 255, 255]
},
{
type: "CIMSolidStroke",
enable: true,
capStyle: "Butt",
joinStyle: "Round",
width: 3.4,
color: [0, 0, 0, 255]
}]
}
}
});
CIMPolygonSymbol
Since 4.16
The code snippet below shows an example of a CIMPolygonSymbol with a CIMSolidStroke layer and a CIMSolidFill layer.
const polygonSymbol = new CIMSymbol({
data: {
type: "CIMSymbolReference",
symbol: {
type: "CIMPolygonSymbol",
symbolLayers: [{
type: "CIMSolidStroke", // outlines the polygon
enable: "true",
width: 0.4,
color: [0, 92, 100, 255]
},
{
type: "CIMSolidFill", // fills the polygon
enable: true,
color: [151, 219, 100, 150]
}]
}
}
});
CIMPolygonSymbol with markerPlacement
Since 4.16
The code snippet below shows an example of a CIMPolygonSymbol with CIMVectorMarker symbols placed inside the polygon.
const markerPolygonSymbol = new CIMSymbol({
data: {
type: "CIMSymbolReference",
symbol: {
type: "CIMPolygonSymbol",
symbolLayers: [{
type: "CIMVectorMarker",
enable: true,
size: 10,
markerPlacement: {
type: "CIMMarkerPlacementInsidePolygon",
gridType: "Fixed",
seed: 13,
stepX: 16,
stepY: 16,
clipping: "ClipAtBoundary",
},
markerGraphics: [{
type: "CIMMarkerGraphic",
geometry: {
rings: [
[
[0,5],
[1.12,1.55],
[4.76,1.55],
[1.82,-0.59],
[2.94,-4.05],
[0,-1.91],
[-2.94,-4.05],
[-1.82,-0.59],
[-4.76,1.55],
[-1.12,1.55],
[0,5]
]
]
},
symbol: {
type: "CIMPolygonSymbol",
symbolLayers: [{
type: "CIMSolidFill",
enable: true,
color: [190,210,255,255]
}]
}
}],
scaleSymbolsProportionally: true,
respectFrame: true
},
{
type: "CIMSolidFill",
enable: true,
color: [0,112,255,255]
}]
}
}
});
Known Limitations
- CIMLineSymbol and CIMPolygonSymbol are not currently supported in a 3D SceneView.
- CIMMeshSymbol is not currently supported.
- CIMTextSymbol is only supported when it is embedded in a CIMPointSymbol or CIMPolygonSymbol. It is not currently supported as a standalone symbol.
- Currently unsupported SymbolLayers: CIMBarChartMarker, CIMCharacterMarker, CIMMaterialSymbolLayer, CIMPieChartMarker, CIMProceduralSymbolLayer, CIMSolidMeshEdge, CIMStackedBarChartMarker, CIMWaterFill, CIMObjectMarker3D, CIMglTFMarker3D, CIMGradientFill, CIMGradientStroke
- The possible values for fontFamilyName property on CIMTextSymbol are dependent upon if you working with a MapView or SceneView. See the Labeling guide page for detailed explanation. Unsupported fonts will fall back to
Arial Unicode MS Regularin MapView andsans-serifin SceneView. - Currently,
minScaleandmaxScaleare not supported on CIMSymbolReference. - Currently,
curvedRingsis not supported. - Currently,
colorproperty expects an array of numbers [r, g, b, a] which is different from the CIM Specification. - Currently, PrimitiveOverride does not work on all the properties, including CIMGeometricEffects.
- Currently, CIMGeometricEffects are not suppported with labels.
- The following markerPlacements are not currently supported on CIMMarker:
CIMMarkerPlacementAlongLineRandomSize,CIMMarkerPlacementAlongLineVariableSize, andCIMMarkerPlacementAtMeasuredUnits. - Symbols with CIMPictureMarkers, CIMPictureStroke, or CIMPictureFill with geometric effects are not currently supported in the Legend widget.
