DirectLineMeasurement3D

require(["esri/widgets/DirectLineMeasurement3D"], function(DirectLineMeasurement3D) { /* code goes here */ });

Class: esri/widgets/DirectLineMeasurement3D

Inheritance: DirectLineMeasurement3D Widget Accessor

Since: ArcGIS API for JavaScript 4.6

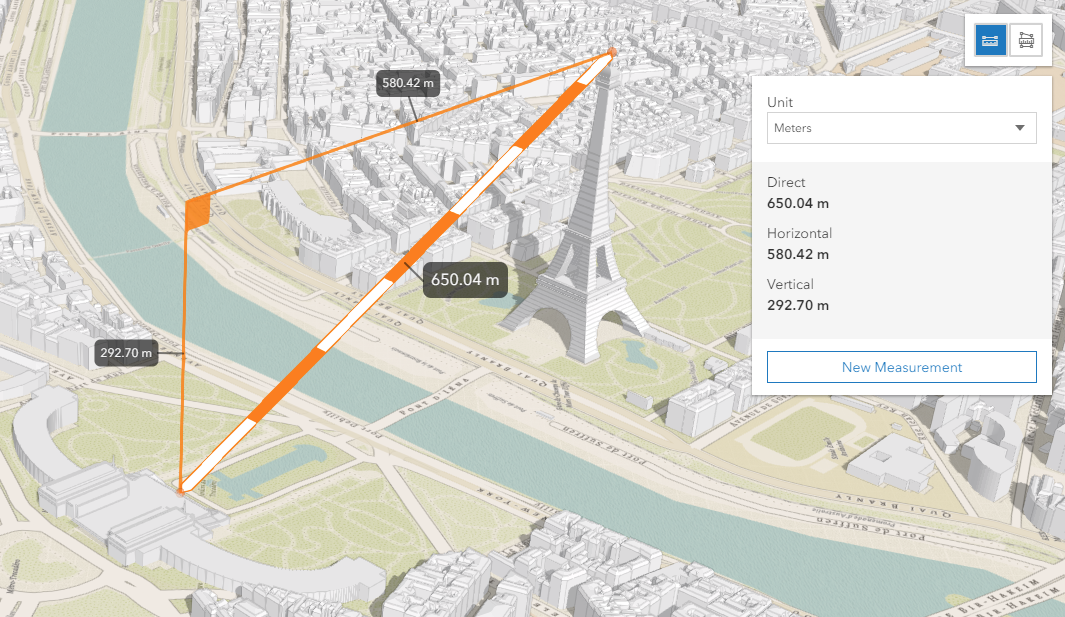

The DirectLineMeasurement3D widget calculates and displays the 3D distance between two points. This widget can be used in a SceneView to measure the vertical, horizontal, and direct distance between two points.

When the widget is active, a horizontal "laser" line is drawn which indicates the height at the current mouse position. This line can help in analyzing the heights of objects relative to each other and the terrain. A second laser line shows the intersection of the scene with the vertical plane that passes through the checkered line.

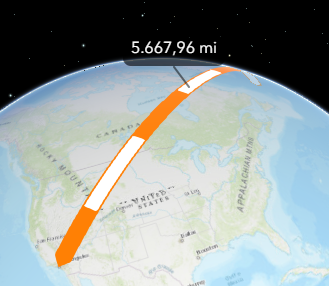

DirectLineMeasurement3D widget labels the direct, horizontal, and vertical orange distance lines and displays the same values in the UI panel. In a WGS84 or WebMercator scene, when the distance between the points is greater than 100 km, DirectLineMeasurement3D widget switches to displaying only the Horizontal and Vertical distances taking into consideration the curvature of the earth (i.e. ellipsoid-based geodesic distance).

measurement-line-3d

This widget is designed to work with 3D SceneViews. For measurements with 2D MapViews, use DistanceMeasurement2D.

For information about gaining full control of widget styles, see the Styling topic.

See also:

Example:

var measurementWidget = new DirectLineMeasurement3D({
  view: view
});

view.ui.add(measurementWidget, "top-right");

Constructors

new DirectLineMeasurement3D(properties)

Parameter:

properties Object

optional

See the properties for a list of all the properties that may be passed into the constructor.

Example:

// typical usage
var measurementWidget = new DirectLineMeasurement3D({
  view: view
});

Property Overview

Any properties can be set, retrieved or listened to. See the Working with Properties topic.

Show inherited properties Hide inherited properties

Type	Summary	Class
String\|HTMLElement	The ID or node representing the DOM element containing the widget. more details	more details	Widget
String	The name of the class. more details	more details	Accessor
String	The widget's default CSS icon class. more details	more details	DirectLineMeasurement3D
String	The unique ID assigned to the widget when the widget is created. more details	more details	Widget
String	The widget's default label. more details	more details	DirectLineMeasurement3D
SystemOrLengthUnit	Unit system (imperial, metric) or specific unit used for displaying the distance values. more details	more details	DirectLineMeasurement3D
SystemOrLengthUnit []	List of unit systems (imperial, metric) and specific units for displaying the distance values. more details	more details	DirectLineMeasurement3D
SceneView	A reference to the SceneView. more details	more details	DirectLineMeasurement3D
DirectLineMeasurement3DViewModel	The view model for this widget. more details	more details	DirectLineMeasurement3D

Property Details

container String|HTMLElement inherited

The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use cases when working with widgets.

Examples:

// Create the HTML div element programmatically at runtime and set to the widget's container
const basemapGallery = new BasemapGallery({
  view: view,
  container: document.createElement("div")
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// Specify an already-defined HTML div element in the widget's container

const basemapGallery = new BasemapGallery({
  view: view,
  container: basemapGalleryDiv
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// HTML markup
<body>
  <div id="viewDiv"></div>
  <div id="basemapGalleryDiv"></div>
</body>

// Specify the widget while adding to the view's UI
const basemapGallery = new BasemapGallery({
  view: view
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

declaredClass Stringreadonly inherited Since: ArcGIS API for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

iconClass String

The widget's default CSS icon class.

id String inherited

The unique ID assigned to the widget when the widget is created. If not set by the developer, it will default to the container ID, or if that is not present then it will be automatically generated.

label String

The widget's default label.

unit SystemOrLengthUnit Since: ArcGIS API for JavaScript 4.8

Unit system (imperial, metric) or specific unit used for displaying the distance values.

unitOptions SystemOrLengthUnit [] Since: ArcGIS API for JavaScript 4.7

List of unit systems (imperial, metric) and specific units for displaying the distance values.

view SceneView

A reference to the SceneView. Set this to link the widget to a specific view.

viewModel DirectLineMeasurement3DViewModelautocast Since: ArcGIS API for JavaScript 4.7

The view model for this widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the DirectLineMeasurement3DViewModel class to access all properties and methods on the widget.

Method Overview

Show inherited methods Hide inherited methods

Return Type	Summary	Class
String	A utility method used for building the value for a widget's `class` property. more details	more details	Widget
	Destroys the widget instance. more details	more details	Widget
Boolean	Emits an event on the instance. more details	more details	Widget
Boolean	Indicates whether there is an event listener on the instance that matches the provided event name. more details	more details	Widget
Object	Registers an event handler on the instance. more details	more details	Widget
	Widget teardown helper. more details	more details	Widget
	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget
Object	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget
	Renders widget to the DOM immediately. more details	more details	Widget
	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget

Method Details

classes(classNames){String}inherited Since: ArcGIS API for JavaScript 4.7

A utility method used for building the value for a widget's class property. This aids in simplifying CSS class setup.

Parameter:

classNames String|String []|Object

repeatable

The class names.

Returns:

Type	Description
String	The computed class name.

See also:

Guide - Widget development (rendering)

Example:

// .tsx syntax showing how to set CSS classes while rendering the widget

render() {
  const dynamicIconClasses = {
    [CSS.myIcon]: this.showIcon,
    [CSS.greyIcon]: !this.showIcon
  };

  return (
    <div class={classes(CSS.root, CSS.mixin, dynamicIconClasses)} />
  );
}

destroy()inherited

Destroys the widget instance.

emit(type, event){Boolean}inherited

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters:

type String

The name of the event.

event Object

optional

The event payload.

Returns:

Type	Description
Boolean	`true` if a listener was notified

hasEventListener(type){Boolean}inherited

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameter:

type String

The name of the event.

Returns:

Type	Description
Boolean	Returns true if the class supports the input event.

on(type, listener){Object}inherited

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters:

type String|String []

A event type, or an array of event types, to listen for.

listener Function

The function to call when the event is fired.

Returns:

Type Description

Object

Returns an event handler with a remove() method that can be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example:

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

own(handles)inherited

Widget teardown helper. Any handles added to it will be automatically removed when the widget is destroyed.

Parameter:

handles WatchHandle|WatchHandle []

Handles marked for removal once the widget is destroyed.

postInitialize()inherited

This method is primarily used by developers when implementing custom widgets. Executes after widget is ready for rendering.

render(){Object}inherited

This method is primarily used by developers when implementing custom widgets. It must be implemented by subclasses for rendering.

Returns:

Type	Description
Object	The rendered virtual node.

renderNow()inherited

Renders widget to the DOM immediately.

scheduleRender()inherited

This method is primarily used by developers when implementing custom widgets. Schedules widget rendering. This method is useful for changes affecting the UI.
