// Create the field element
const fieldElement1 = new FieldElement({
  fieldName: "inspector",
  label: "Inspector name"
});

const fieldElement2 = new FieldElement({
  fieldName: "inspdate",
  label: "Inspection date",
  description: "Date inspection was handled",
  input: { // autocastable to DateTimePickerInput
    type: "datetime-picker",
      includeTime: true,
      min: 1547678342000,
      max: 1610836742000
    }
});

const fieldElement3 = new FieldElement({
  fieldName: "placename",
  label: "Business name",
  editable: false
});

// Next pass in any elements to the FormTemplate

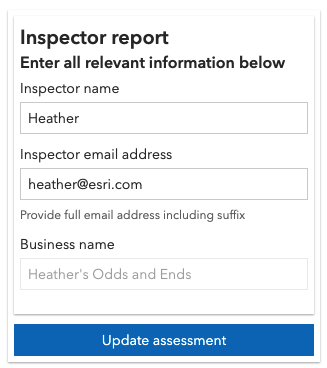

const formTemplate = new FormTemplate({
  title: "Inspector report",
  description: "Enter all relevant information below",
  elements: [fieldElement1, fieldElement2, fieldElement3] // Add all elements to the template
});

Property Overview

Property Details

declaredClass Stringreadonly inherited

The name of the class. The declared class name is formatted as esri.folder.className.

description String inherited

The element's description providing the purpose behind it.

domain CodedValueDomain|RangeDomainautocast

The coded value domain or range domain of the field. If it is defined, this domain takes precedence over domains defined within the form's fieldConfig.

editable Boolean

Indicates whether the field can be edited.

This does not change the underlying service's field and whether it can be edited.

Default Value:true

fieldName String

The field name as defined by the feature layer. Set this property to indicate which field to edit.

hint String

Contains a hint used to help editors while editing fields.

input TextBoxInput|TextAreaInput|DateTimePickerInputautocast

The input user interface to use for the element. The client application is responsible for defining the default user interface.

label String inherited

A string value containing the field alias. This is not to Arcade expressions as the title is used instead.

requiredExpression String

A reference to an Arcade expression that returns a boolean value. When this expression evaluates to true and the element is visible, the element must have a valid value in order for the feature to be created or edited. When the expression evaluates to false, the element is not required. If no expression is provided, the default behavior is that the element is not required. If the referenced field is non-nullable, the required expression is ignored and the element is always required.

type String

Indicates the type of form element. FieldElement is of type, field.

For FieldElement the type is always "field".

Example:

// Create an array of elements. If the element is autocasted, the type property must be set.
elements: [{
  // autocastable as FieldElement
  type: "field",
  fieldName: "lastname",
  label: "Last name"
 },
 {
  type: "field",
  fieldName: "firstname",
  label: "First name"
 }]

visibilityExpression String inherited

A reference to an Arcade expression that returns a boolean value. When this expression evaluates to true, the element is displayed. When the expression evaluates to false the element is not displayed. If no expression is provided, the default behavior is that the element is displayed. Care must be taken when defining a visibility expression for a non-nullable field i.e. to make sure that such fields either have default values or are made visible to users so that they can provide a value before submitting the form.

The referenced expression must be what is defined in the form template's expressionInfos. It cannot be set inline within the element object.

See also:

• ExpressionInfo

• Sample - Update Feature Attributes

Example:

// Expression created within ExpressionInfos and is referenced in element
const expression = new ExpressionInfo({
  name: "alwaysHidden",
  expression: "1 == 0"
});

// Reference an already-defined visibilityExpression set within the ExpressionInfos
const fieldElement = new FieldElement({
  type: "field",
  fieldName: "inspemail",
  label: "Email address",
  visibilityExpression: "alwaysHidden"
});

Method Overview

Method Details

clone(){FieldElement}

Creates a deep clone of the FieldElement class.

Returns:

Type	Description
FieldElement	A deep clone of the FieldElement instance.

fromJSON(json){*}static

Creates a new instance of this class and initializes it with values from a JSON object generated from a product in the ArcGIS platform. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameter:

json Object A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns:

Type	Description
*	Returns a new instance of this class.

toJSON(){Object}inherited

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns:

Type	Description
Object	The ArcGIS portal JSON representation of an instance of this class.
